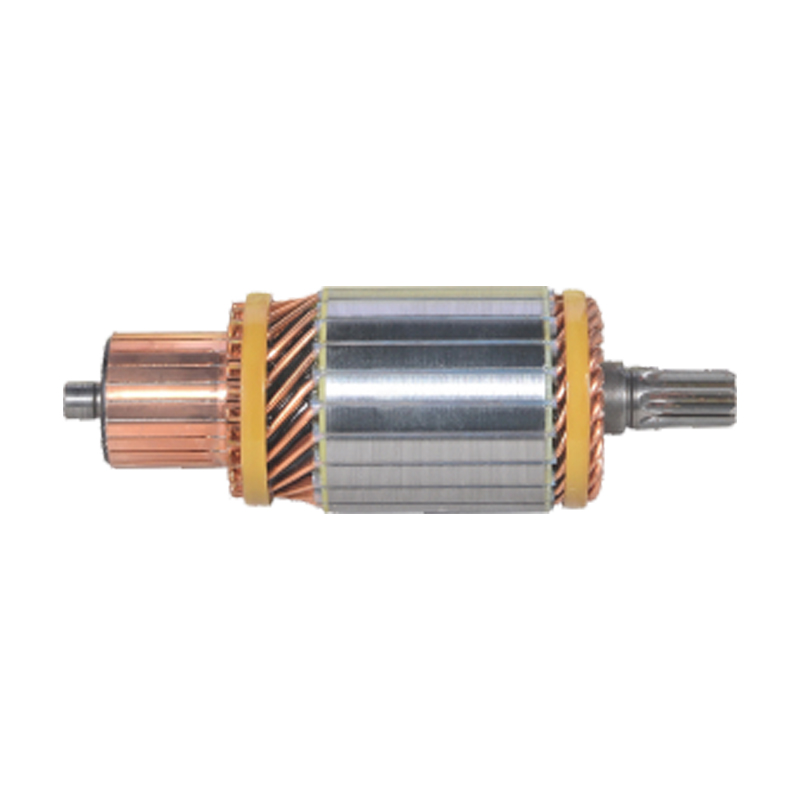

Nikko truck starter parts armature 24Volt 5KW
Nikko truck starter parts armature 24Volt 5KW
Payment Type: T/T,Others
Product Attributes
Product Attributes
Model No.: JH-DS084
| Selling Units | : | Piece/Pieces |
|---|
The file is encrypted. Please fill in the following information to continue accessing it
Product Description
The rotor of the Nikko Truck Starter is one of the core components of the starter, which is composed of an iron core and a coil. The rotor is driven by current to generate a magnetic field, causing it to rotate under the action of electromagnetic force. The rotational motion of the rotor is transmitted to the engine through the transmission device, thereby achieving the start of the engine.
The iron core of Nikko truck starter rotor is usually made of high permeability silicon steel sheets to improve the efficiency of magnetic flux conduction. The iron core is wound with a coil, which is usually made of conductive material and generates a magnetic field through current drive. The rotor rotates under the action of electromagnetic force, and its speed can be adjusted by controlling the magnitude and direction of the current.
The design and manufacturing of Nikko truck starter rotors need to consider factors such as rotor balance, strength, and wear resistance. The balance of the rotor is an important factor in ensuring the normal operation of the starter. Unbalanced rotors can lead to increased vibration and noise, and even affect the lifespan of the starter. The strength of the rotor should be high enough to withstand the impact force when the starter starts. At the same time, the surface of the rotor needs special treatment to improve its wear resistance and extend its service life.
In summary, the rotor of the Nikko truck starter is an important component of the starter, which generates a magnetic field through current drive to achieve engine start-up. Its design and manufacturing need to consider factors such as balance, strength, and wear resistance to ensure the normal operation and long service life of the starter.

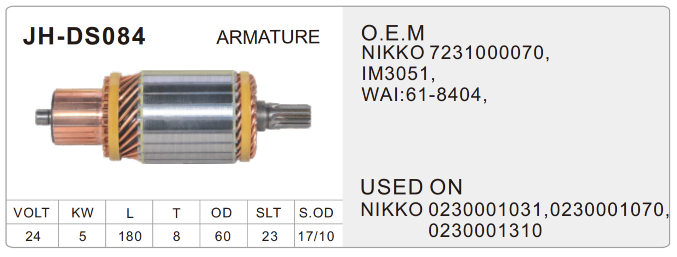

Item No.：JH-DS084 ARMATURE
VOLT：24V
KW：5
L：180
T：8
OD：60
SLT：23
S.OD：17/10
O.E.M：NIKKO 7231000070,
Item No.：JH-DS084 ARMATURE
VOLT：24V
KW：5
L：180
T：8
OD：60
SLT：23
S.OD：17/10
O.E.M：NIKKO 7231000070,
IM3051,
WAI:61-8404,
USED ON：NIKKO 0230001031,0230001070, 0230001310
